Heightened Plastic Material Hardness Tester Bench Type 400mm Height

Name: Heightened Plastic Material Hardness Tester Bench Type 400mm Height
Brand: HUATEC
Price: 1400 USD

Buy cheap Heightened Plastic Material Hardness Tester Bench Type 400mm Height product

Brand Name : HUATEC

Model Number : XHR-150H

Certification : ISO, CE, GOST

Place of Origin : Beijing

MOQ : 1pcs

Price : 1400-1600usd

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1-4days

Packaging Details : Standard export package

Max Height of Specimen : 400mm

Standards : GB7407 JJG884

Test force : 60kgf(588N) 100kgf(980N) 150kgf(1471N)

Preliminary Testing force : 10kgf(98.07N)

Size : 520*240*700mm

Weight : 55kgs

Contact Now

Heightened Plastic Material Hardness Tester Portable 400mm Height

Main Features:

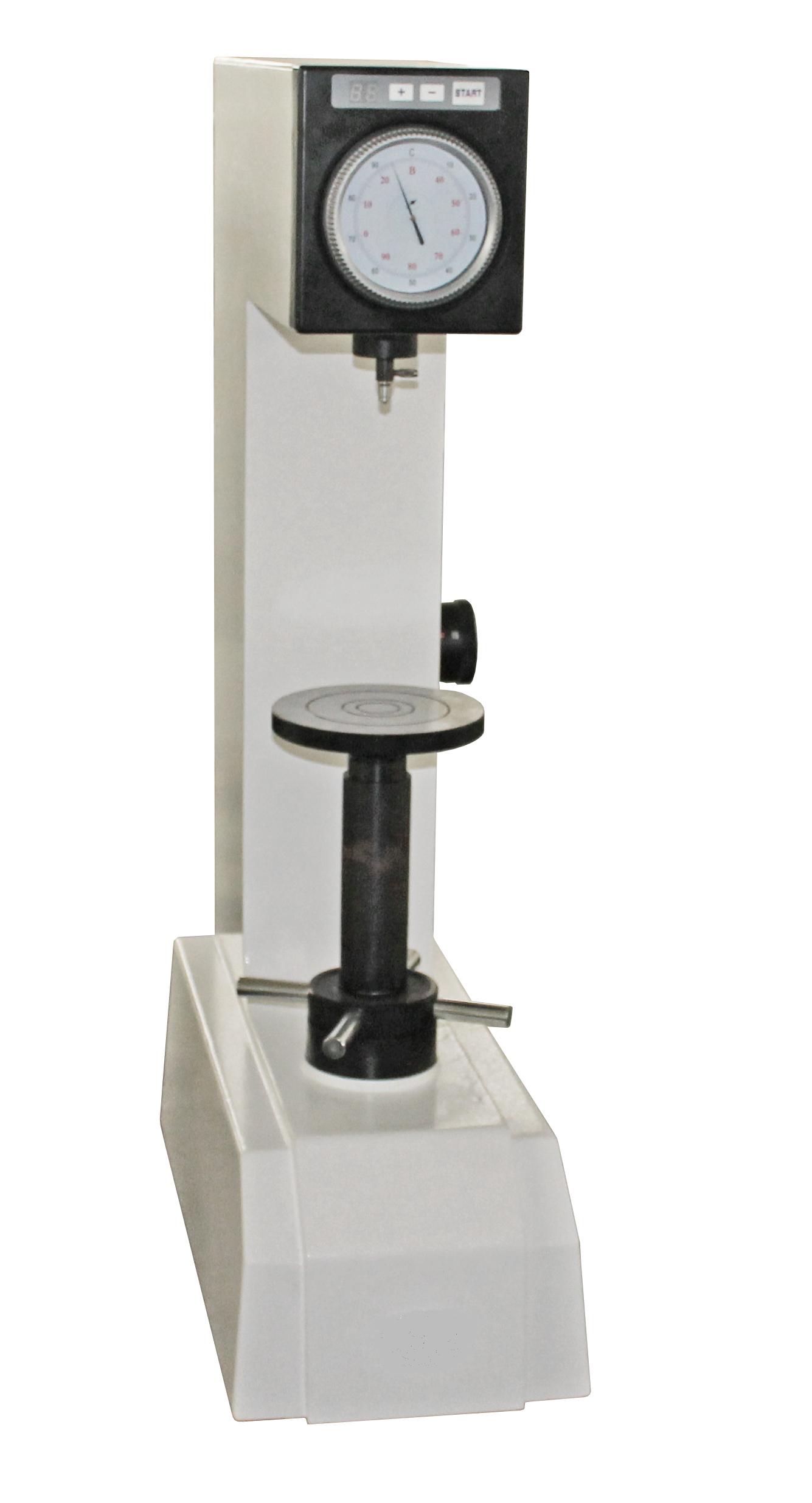

Model XHR-150H Heightened Plastic Rockwell hardness tester with dial can be specially tested for nonmetal materials, such as plastic, hard rubber, synthetic resin, friction materials and a soft metal hardness tester. Its testing including loading, the dwelling, unloading automatically can be done automatically. The highest tested specimen can be 400mm.

Application materials: plastic, hard rubber, synthetic resin, friction materials and a soft metal

Technical Specifications:

Model	XHR-150H Plastic Rockwell hardness tester
Indication of Hardness Value	Dial
Max Height of Specimen	400MM
Duration time	2-60s
Carried Standard	GB7407 JJG884
Distance of Indenter to outer wall	160m
Preliminary Testing force	10kgf(98.07N)
Testing force	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell Scale	HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK
Hardness measuring range	HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100
Power supply	AC220V+5%,50-60Hz
Overall Dimension (mm)	520240700
Net weight	About 55Kg

Heightened Plastic Material Hardness Tester Bench Type 400mm Height

Standard Accessories:

Name	Quantity	Name	Quantity
Diamond Rockwell Indenter	1	Diameter 1.5875mm Ball Indenter	1
Hardness block (HRE, HRL, HRM, HRR )	1 each	Large, Medium, “V” shaped Testing anvil	1 each
Weights(A,B,C)	1 each	Plastic Dustproof cover	1
Manual	1	Product certificate	1
