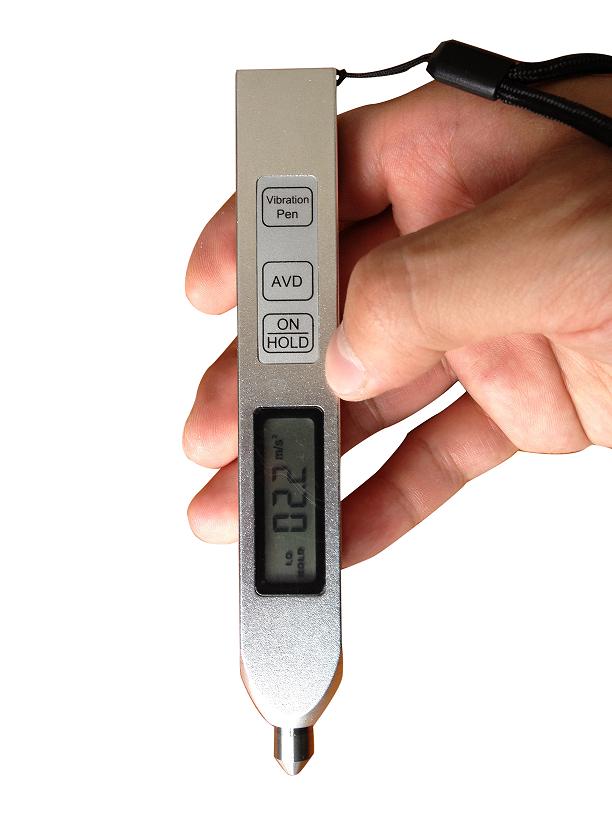

Compact Lightweight Vibration Meter Vibro Pen For Acceleration / Velocity Testing

Product Categories

HUATEC GROUP CORPORATION

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Compact Lightweight Vibration Meter Vibro Pen For Acceleration Velocity Testing
Brand: HUATEC
Price: 1 USD

Place of Origin : Beijing

Brand Name : HUATEC

Certification : ISO, CE, GOST

Model Number : HG6430

MOQ : 1pcs

Delivery Time : 1-4days

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 500pcs per month

Packaging Details : Standard export package

Testing parameters : acceleration, velocity and displacement testing

Acceleration : 0.1m/s2-199.9m/s2(peak)

Velocity : 0.1mm/s-199.9 mm/s(RMS)

Displacement : 0.001mm-1.999 mm (peak-peak)

Accuracy : ±5% ± 2digits

Contact Now

Compact Lightweight Vibration Meter For Acceleration / Velocity Testing

Features:
·Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.

·Compact size, small weight, easy handling

·Prompt testing of vibration on the workshop machines

·For quick checking of unbalance misalignment, bearings and gears

·Guard against mechanical malfunction

·Holding tested value for 40 seconds

·Automatic switch off after 40 seconds

·HG6430 is used for acceleration, velocity and displacement testing

Technical Specifications:

Model	HG6430
Parameter	Acceleration, Velocity, Displacement
Testing range	Acceleration:0.1m/s²-199.9m/s²(peak) Velocity: 0.1mm/s-199.9 mm/s(RMS) Displacement: 0.001mm-1.999 mm (peak-peak)
Frequency range	Acceleration: 10Hz ~ 1kHz(LO) 1kHz ~ 15kHz(HI) Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz
Accuracy	±5% ± 2digits
Display	3 1/2 digits LCD
Power supply	two button batteries(LR44 or SR44)
Battery capacity	Approx. 5 hours working continuously
Operating temperature	0℃ ~ 40℃
Humidity	<85%
Dimension	150mm×22mm×16mm
